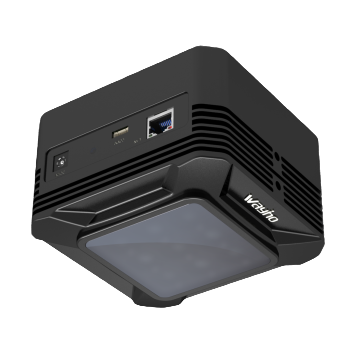

Spectral Video Camera MAX-G800
MAX-G800 Spectral Video Camera is developped and made by Shenzhen Wayho Technology Co.,Ltd. It is widely used in different conditions like portable, outdoor and indoor, and can obtain spectral information quickly and accurately in applications such as industrial inspection, ecological environment, precision agriculture, and so on. This product captures target object’s spatial information and spectral information simultaneously, achieves non-destructive, non-contact, and rapid discovery, identification, classification and analysis, with help of spectral characteristics from different parts of target object.
- Essential Parameter
- Technological Superiority
- Application Area
Model | MAX-G800 |
Spectrum Band | 7 + RGB |
Spectrum Range | （Standard）450nm、550nm、650nm、720nm（narrow band）、750nm（narrow band）、800nm、850nm. （Optional）410nm、490nm、530nm、570nm、600nm、660nm、680nm、720nm、750nm、780nm、900nm. |
Image Sensor | 1 / 2.9 inch CMOS, global shutter, 1.55M pixels |
Image Resolution | 1440 * 1080 |
Bit Depth | 12bit |
Optical Lens | Focal length f=5.35mm, Aperture F/2.0 |
FOV | HFOV: 49.8°，VFOV: 38.4° |
Frame rate | 20 fps (real time) |
Data Format | IMG（ENVI）/ TIFF / JPG |
Storage | MicroSD card, standard capacity 128G |
Device Interface | 1X RJ-45 Gig-E, 1x USB3.0, 1x Mini HDMI, 1x RS232, 2x I/O port |
Device extension | Support GPS / IMU, WiFi and DLS |
Software | Capture and control software, providing SDK for 2nd development |
Flight platform | Support integration of UAV platform (fixed-wing, rotary-wing, and so on) |
Capture mode | Real-time acquisition |
Power Input | DC 12V/2A |
Power Consumption | ＜10W |
Weight | 766g |
Dimensions | 123mm * 115mm * 79mm |
Operating Temperature
| -20℃to 50℃ |
Storage temperature | -20℃to 60℃ |
● Configurable spectral band choice, providing strong data basis.
● Mulitple spectral channels and one RGB channel.
● High image quality with resolution up to 1440 * 1080.
● High frame rate up to 20fps.
● Real-time spectral video capturing and transmitting, on-line spectral analysis.
● Support integration of UAV (fixed-wing, rotary-wing, and so on) platform.
● High-precision radiation calibration, Real-time ambient light correction.
● Industrial
● Agriculture
● Ecological environment
● Land resources
● Science
